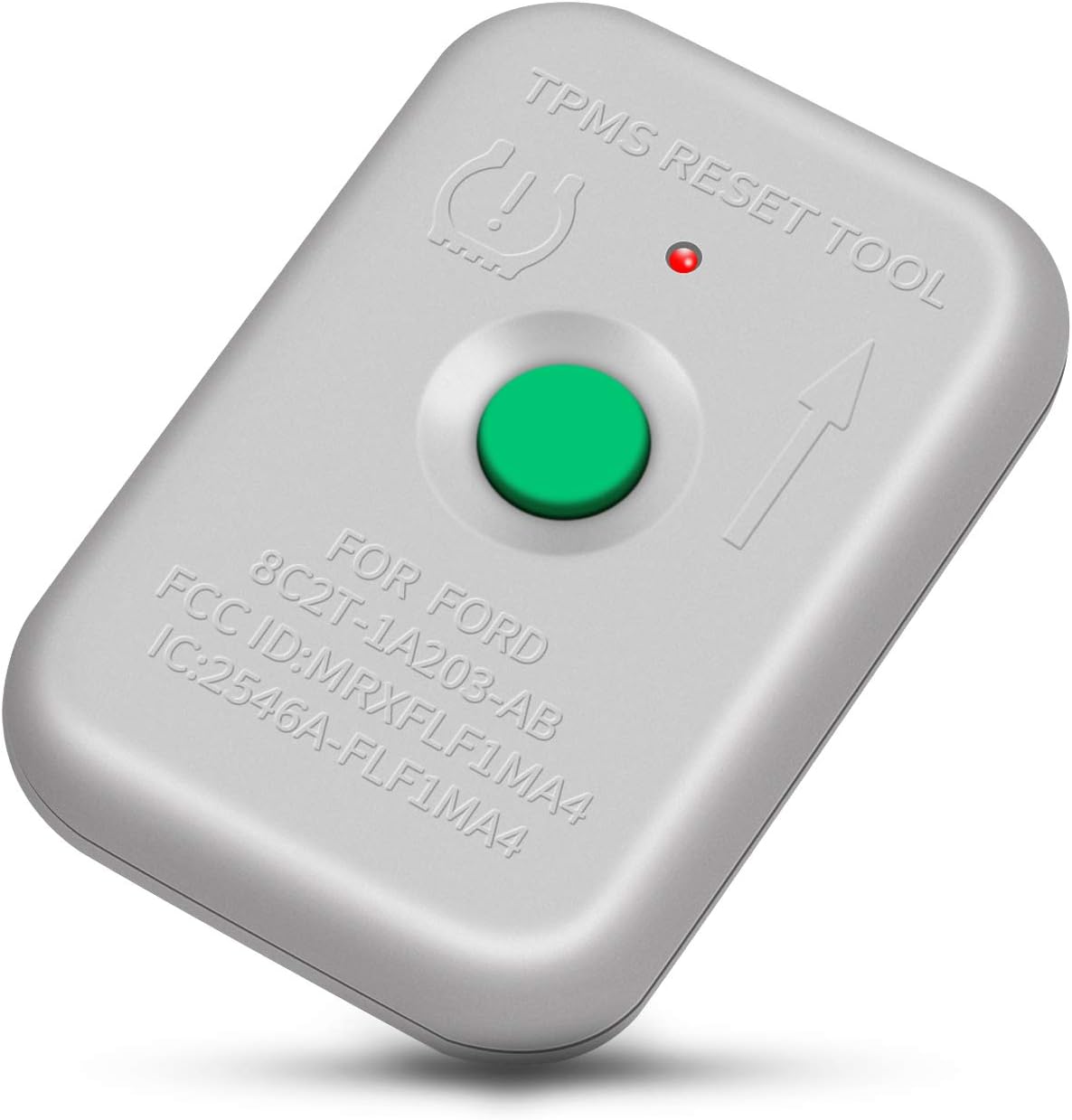

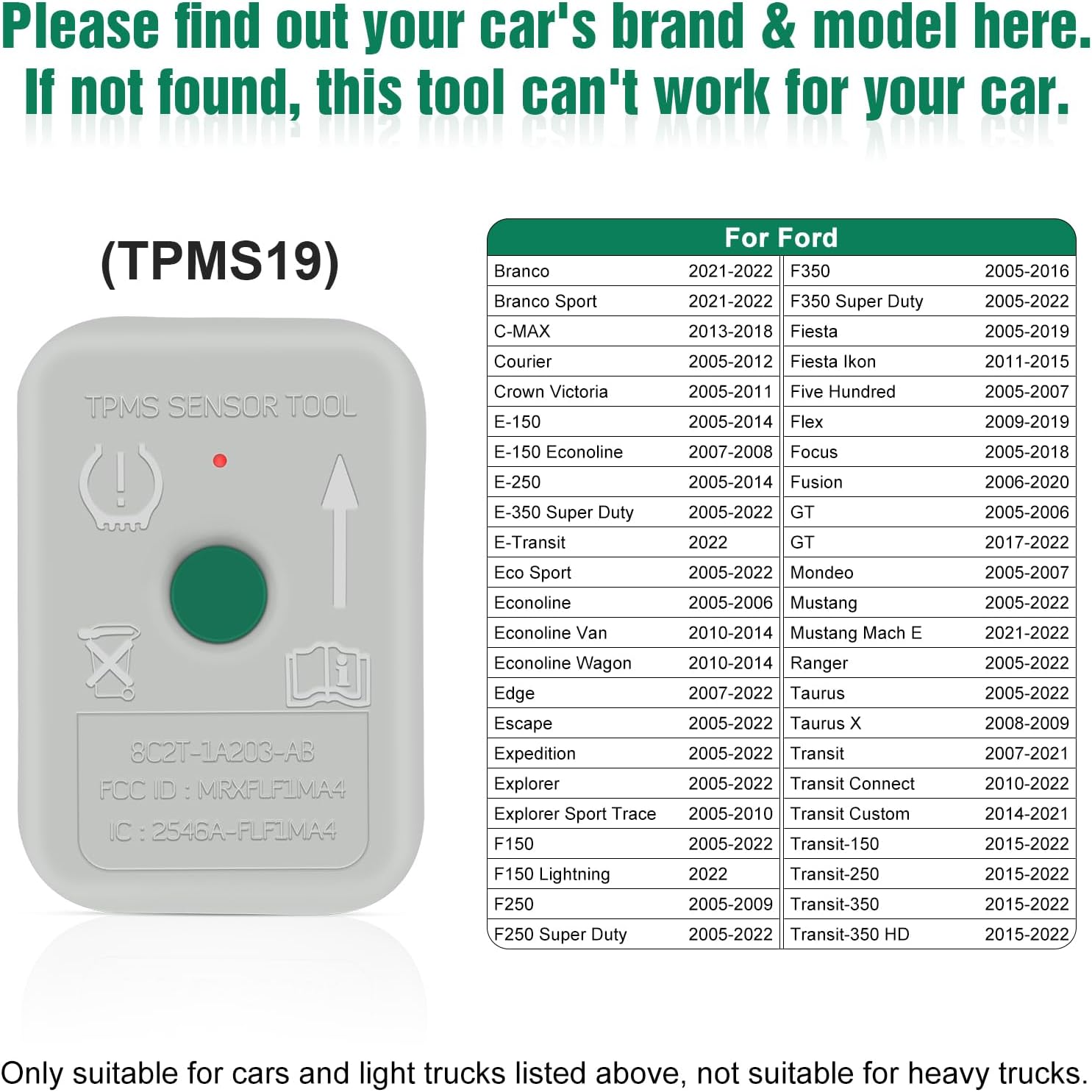

TPMS19 tpms tool is a tire relearn tool ,work for F150 series vehicle Tire Pressure Monitoring system sensor. it is an essential tool of replacement tire pressure sensor, tire pressure alarm remove or exchange tires for F150 / Lincoln / Mercury etc.
When you need this tire relearn tool?
1. New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.
2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
3. When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
5. Exchanging the winter tires or Summer tires.

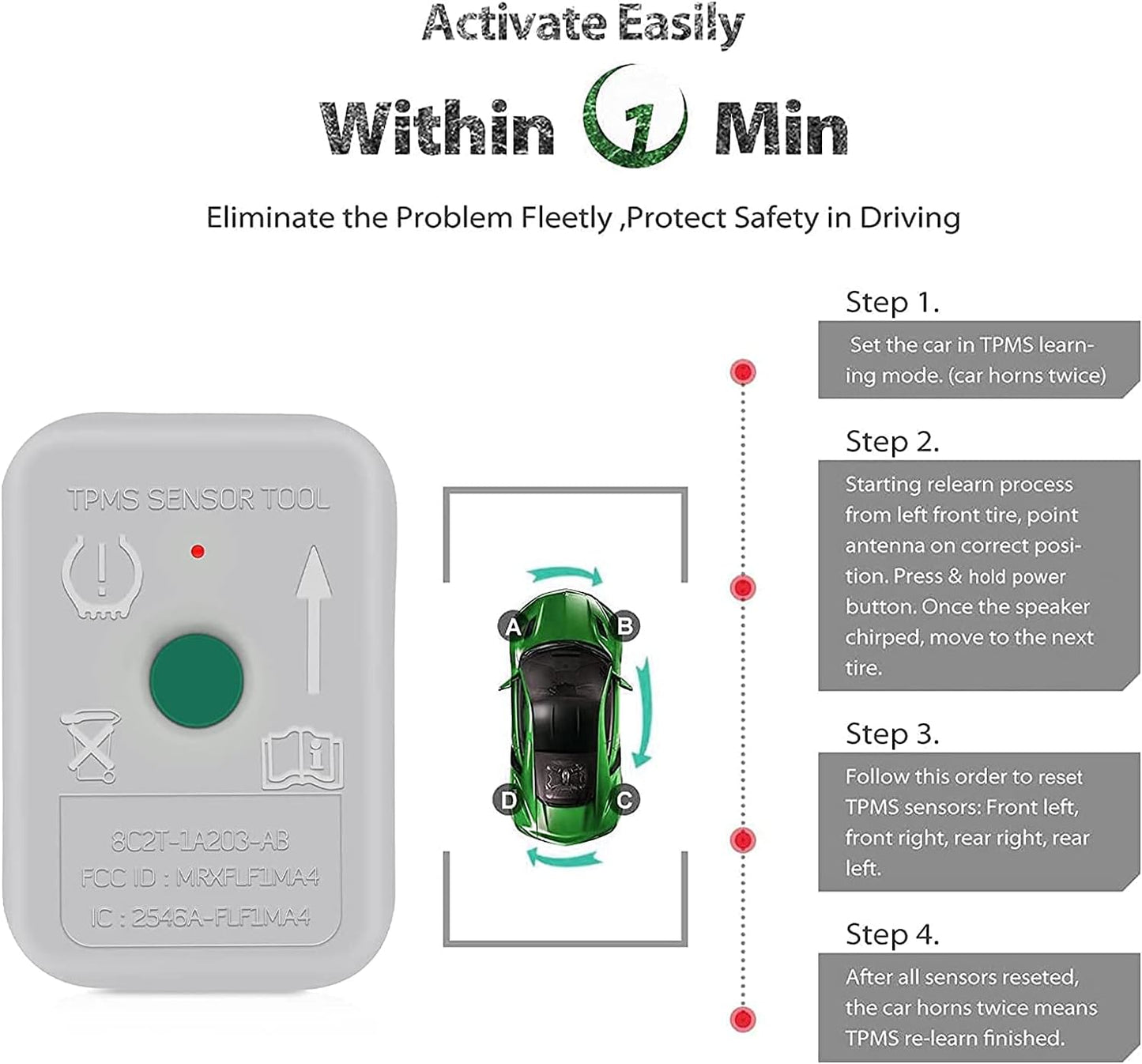

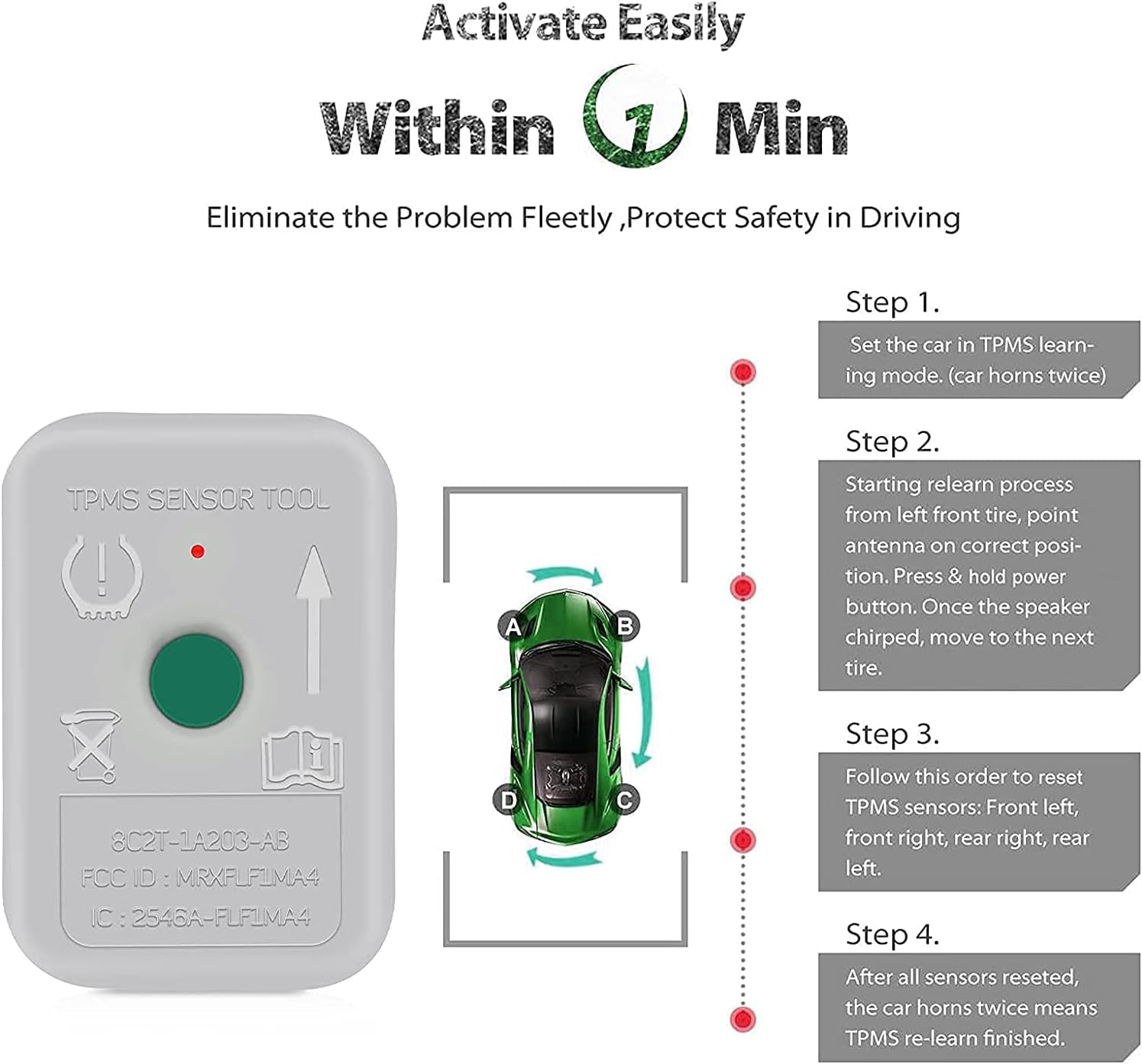

How to use TPMS19 sensor tool?
1. Set the car in TPMS learning mode. (car horns twice)

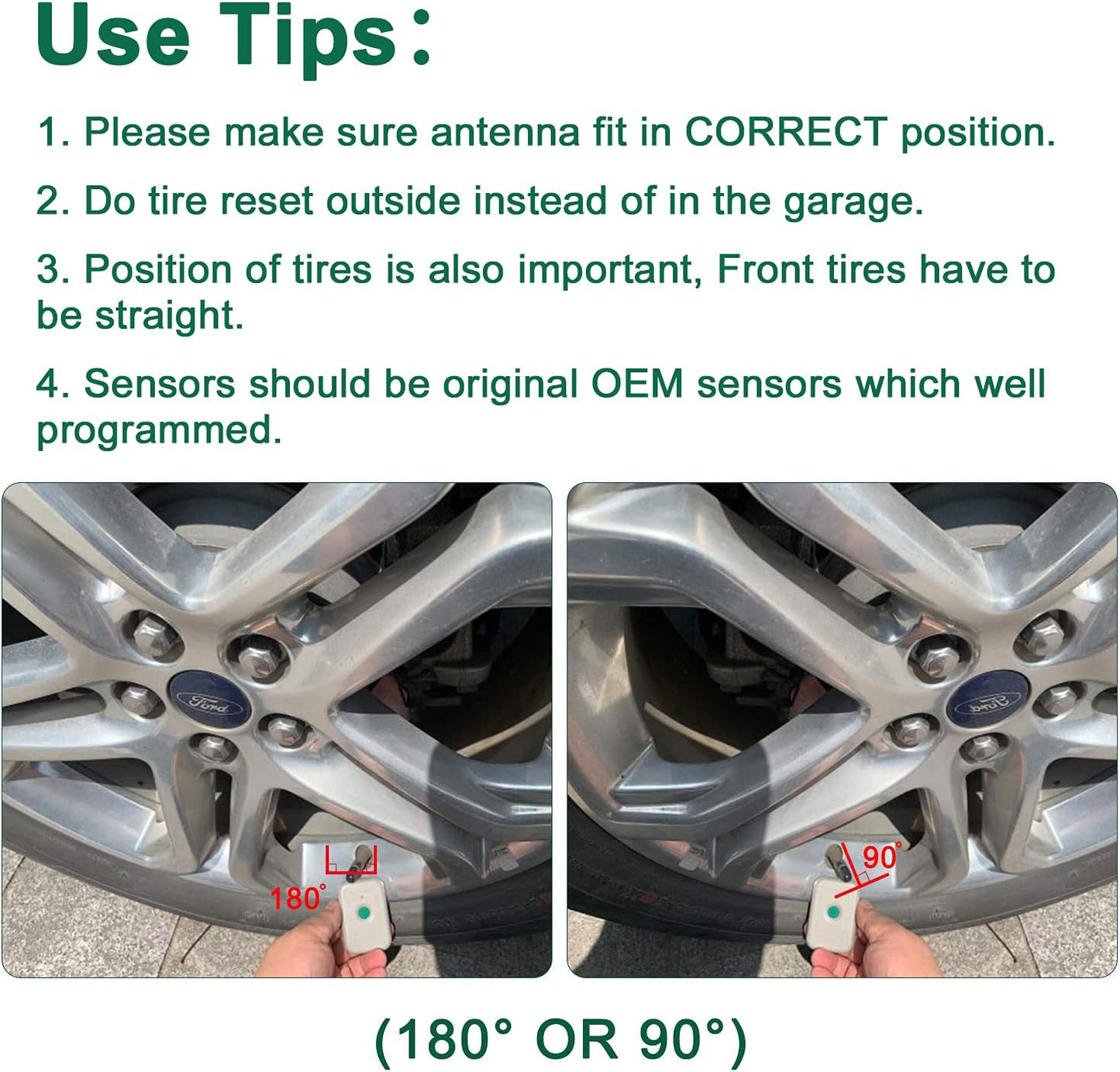

2. Starting relearn process from left front tire, point antenna on correct position. Press & hold power button. Once the speaker chirped, move to the next tire.
3. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left.
4. After all sensors reset, the car horns twice means TPMS re-learn finished.
How to set vehicle in TPMS re-learn mode?
1. Make the gear in P position.
2. Ignition switch to OFF, press and release the brake pedal.
3. Turn ignition switch from OFF position to RUN position 3 times and end at RUN position.
4. Depress and release the brake pedal.
5. Ignition to OFF position.
6. Ignition goes from OFF position to RUN position 3 times and ends at RUN position.
7. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.
